3D Extrusion.tif 3D Extrusion

TOP_Extrud
The Extrusion tool options palette.
3D_Extrd_Ex.psd

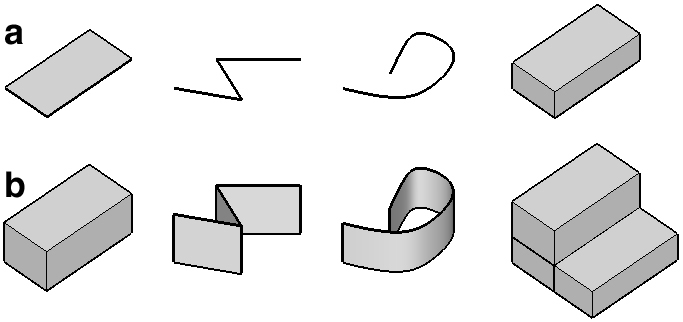

Extruding faces: (a) original and (b) derived.
Two objects are derived from the far right cube.

This tool is used to extrude faces, outlines, or segments of objects. To execute the operation, with the tool active click on an entity, then move the mouse up or down to define a height. The extrusion can be Perpendicular To Reference Plane or To Surface, which is selected from the tool options palette.
