Traxxas TRX4 Bronco Sunset

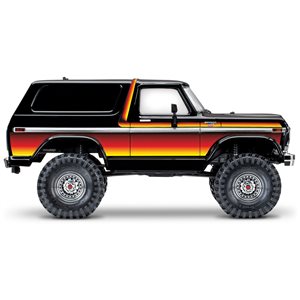

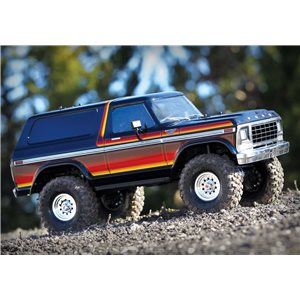

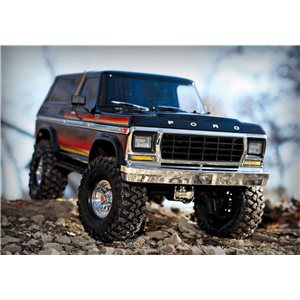

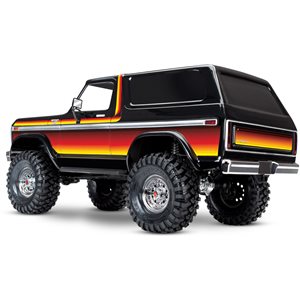

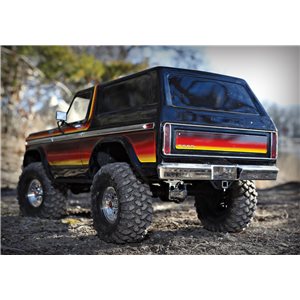

Formally Accredited Ford Bronco Body
Scale information: grill, chrome bumpers, side mirrors, chrome side trim, and wipers
Clear front and side windows
Genuine decal sheet
Complete Nylon composite wheel wells and flooring pans
Extra scale devices offered independently
Trail-tuned XL-5 HV Water Resistant Electronic Speed Control
Totally water resistant style
5 drive profiles
Sport Mode — forward / brake / reverse
Race Mode — forward / brake / no reverse
Training Mode™ — 50% forward / 100% brake / 50% reverse (trademarked)
Path Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode — forward / instantaneous reverse - no neutral with 100% hill holding brake
Traxxas EZ-Set® one-button setup
Big, effective heat sink
Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
2 phase low voltage defense (LVD)
Motor
Effective Titan™ 21T reverse rotation motor with internal cooling fan
Accuracy, preset gear mesh adjustments
Motor retention separate from gear mesh
Portal Axles
Increase ground clearance
Eliminate torque twist
Steel gears
Improve axle geometry and reduce strain on driveshafts

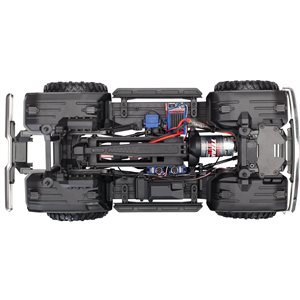

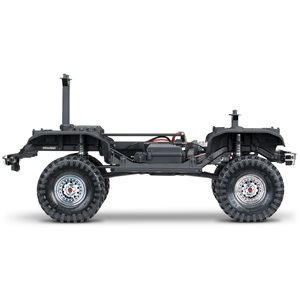

Rigid Steel Frame
1.5mm thick steel frame rails increase torsional rigidity
Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
Adjustable rear shock tower positions for SWB and LWB configurations
Bumpers adjust fore and aft
Rugged rock rails adjust for width
Wire routing clips integrated into frame rails
Drivetrain
Full-time shaft driven 4-wheel drive
Tough 6mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Remote locking steel gear differentials with cable-actuation
Steel gear transfer case
Innovative Battery Compartment
Hinged battery strap allows quick and easy battery access
No pins to lose
Accommodates different height batteries
Accepts full-size long battery packs
Integrated compartment accepts smaller sized 1/16 scale batteries (with optional strap)
Secondary front battery tray accepts smaller sized 1/16 scale batteries (with optional strap)
Transmission
2 speed high/low variety with remote moving
Double horizontal shafts
Twin friction plate slipper clutch
Quickly eliminated for maintenance
Steering
Chassis installed 2075X metal equipment digital servo
Superior 45° guiding angle
Direct steering (no servo saver)
Steering geometry fixed for bump guide
Suspension
Front — 3 relate to panhard
Rear — Triangulated 4 link
Durable rod ends with steel hollow balls
5mm size steel link rods with 4mm threaded ends
Aluminum GTS Shocks
Oil-filled coilover GTS shocks special to TRX-4 chassis
Silver-anodized aluminum bodies
Threaded bodies with collars quickly change trip height
Silky smooth damping for the most difficult tracks
O-ring cap seal and double X-ring shaft seals
Wheels and Tires
Reproduction chrome wheels with center inserts
Pre-mounted 1.9” Canyon Path tires with trail-tuned foam inserts
Path tuned S1 rubber substance
12mm steel hex
Transmitter
TQi™ 2.4GHz 4-channel transmitter
Traxxas Link allowed
Telemetry prepared #6533 5-channel micro receiver with failsafe
Immediately shops and loads settings for as much as 30 Traxxas Link allowed designs
Special Cruise Control feature for extended trail driving
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle endpoints
High 13ms frame rate and near-zero latency for responsive control
Patented O-ring sealed leak-proof receiver box keeps the micro receiver dry
Sealed Ball Bearings
Hex hardware with rust-resistant black oxide covering
Specs
Length: 20.57 inches (523mm)
Front Track: 9.78 inches (249mm)
Rear Track: 9.78 inches (249mm)
Ground Clearance: 3.14 inches (80mm)
Weight: 6.42lb (2.91kg)
Height: 10.47 inches (266mm)
Wheelbase: 12.28 inches (312mm)
Method Angle: 63.82°
Departure Angle: 43.22°
Breakover Angle: 58.93°
Front Shock Length: 3.54 inches (90mm)
Rear Shock Length: 3.54 inches (90mm)
Front Wheels: 1.9 x 1.02 inches (49 x 26mm)
Rear Wheels: 1.9 x 1.02 inches (49 x 26mm)
Front Tires: 4.64 x 1.89 inches (118 x 48mm)
Rear Tires: 4.64 x 1.89 inches (118 x 48mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: 2-speed Hi-Lo, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 2
Battery Tray: 158.75 L x 47 W x 23/26mm H
Brand: Traxxas
