Kraton BLX Green
Secret Includes
Chassis: 0.12" (3mm) thick aluminum, black in color
Drive: 4 wheel with CVD driveshafts
Radio: Technique TTX300 2.4GHz 2-channel
Guiding Servo: ADS-15M waterproof, 195 oz-in (149 kg-cm) torque @6V,
0.16sec speed @6V, metal equipment, 25 tooth spline output
Motor: BLX4074 2050Kv 4-pole brushless
ESC: Water Resistant BLX185 150A SIX with integrated cooling fan, and male
XT90 port
Radio Box: New style paths ESC & receiver wires through a rubber
seal to prevent pinching when cover is changed, receiver is connected
to a plate that slots into receiver box base, one-piece rubber
seal seals out water and dirt
Shocks: 16mm red anodized aluminum body, oil filled, aluminum top
and bottom caps, 0.16" (4mm) size shaft, brand-new high spring perch
Shock Towers: 0.20" (5mm) thick aluminum, black in color
Suspension: Pivot ball with anti-roll bar
Differentials: 3 metal equipment
Roll Cage: Composite internal
Body: Cut and painted polycarbonate, nylon rear wing
Motor Mount: Aluminum
Battery Tray: From the Castaway 6S, with front to back battery strap,
wire routing clips, balance plug stowage, greater sides for much better
fit, and front upper cap that adapts to battery height when
battery strap is tightened up
Tires: dBoots Minokawa, width: 3.3" (85mm), size: 6.2" (157mm)
Wheels: 5 split spoke, black in color 17mm hex, size: 3.8"
(97mm), width 2.6" (66mm)
Camber: Adjustable front and back, camber describes the angle of the
tops of the tires from vertical when seen from front or behind
automobile
Caster: Adjustable, caster/toe-in describes the angle of the front
suspension when seen from the side of the automobile in relation to
the chassis
Had to Total
AA Batteries: 4 for transmitter
2 2-3S 5000mAh 35C minimum LiPo with XT90
port, Onyx 11.1V 5000mAh 35C batteries suggested, or one
4-6S LiPo battery
Appropriate Battery charger
LiPo charging sack, structure and track devices
Exactly what remains in package?

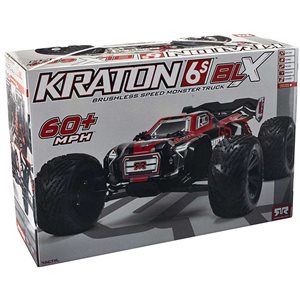

(1) RTR Kraton 6S BLX Speed Truck with Painted Body, 2.4GHz Radio,
Waterproof Steering Servo and Receiver Box, BLX185 ESC, 2050Kv
Brushless Motor, 12T Pinion Equipment, (2) XT90
Battery Connectors and Bridging Wire for single pack usage
(1) User Handbook
Specifications
Automobile
Length: 23.39 in (594mm)
Front and Back Width: 18.11 in (460mm)
Height: 7.68 in (195mm)
Wheelbase: 14.84 (377mm)
Trip Height: 1.85" (47mm)
Weight: 9.15pound (4.5kg)
Optimum Battery Tray Dimensions: 6.22 x 2.76 x 1.89"
(158 x 70 x 49mm)
Body
Length: 18.6" (472mm)
Width: 8" (203mm) behind front wheels, narrowest point
Width: 10.03" (255mm) at rear wheels, largest point
Height: 6.25" (159mm)
Brand: ARRMA
