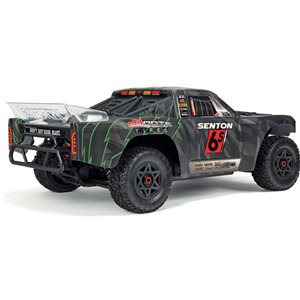

ARRMA Senton 6S BLX Black/Green
Key Features

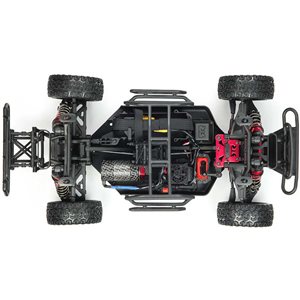

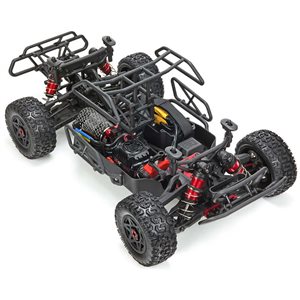

Chassis: 0.12" (3mm) thick aluminum, with side impact bumpers
Drive: Four wheel with CVD driveshafts
Radio: Strategy TTX300 3-channel with user programmable 3rd channel,
steering rate modification, steering and throttle trim & end point
modifications, 3-channel TR326 high voltage (7.4V) micro receiver
with failsafe, 70/30 throttle setting
Steering Servo: ADS-15M metal geared with 208 oz/in torque,
.12 sec @ 60° transit speed
Motor: 2050kV brushless with 12T pinion gear
ESC: Arrma BLX185 150A
Shocks: Aluminum body, oil filled, big bore, plastic top and bottom
caps and preload adjusters
Shock Towers: 0.20" (5mm) thick aluminum
Suspension: Strengthened hangers with inboard hinge pins that are less
likely to pop out
Body: Trimmed and painted
Motor Mount: Aluminum
Gearboxes: Completely sealed
Tires: dboots Sidewinder 2, 1.7" (44mm) broad, 4.2" (108mm) diameter
2.2"/3" mounting bead
Wheels: Plastic building, black in color, 2.2" (56mm) outer
diameter, 1.6" (41.5mm) broad, 17mm hex
Camber: Adjustable front and rear, camber refers to the angle of the
tops of the tires from vertical when viewed from front or behind
car
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the vehicle in relation to
the chassis
Needed to Complete
Two 2-3S 5000mAh 35C minimum LiPo with XT90
port, Onyx 11.1V 5000mAh 35C batteries suggested, or one
or one 4-6S LiPo battery
Appropriate Charger
LiPo charge bag, maintenance and trail equipment
What's in the box?

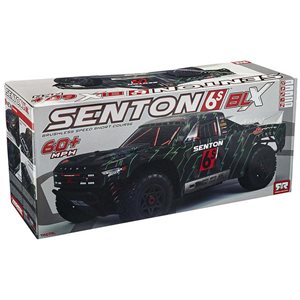

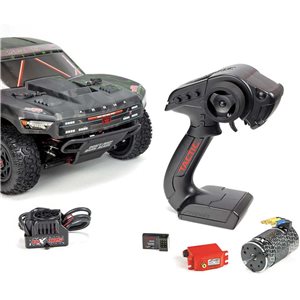

(1) RTR Senton 6S BLX Short Course Truck with 2.4GHz Radio, Brushless
Motor, ESC, and Painted Body
(1) User Manual
Specifications
Car
Length: 22" (560mm)
Width: 11.6" (295mm)
Height: 7.67" (195mm)
Wheelbase: 12.5-12.67" (318-322mm)
Weight: 127oz (3.6kg)
Final Gear Ratio: 11.79
Pinion and Spur Gear Pitch: 1M
Maximum Battery Dimensions: 6.22 x 2.76 x 1.89" (158 x 70 x 48mm)
Body
Length: 21.7" (552mm)
Width: 9.5" (242mm) behind front wheels, narrowest point 12.4" (315mm) at rear wheels, largest point
Height: 5.5" (140mm)
Brand: ARRMA
